Saddle Mounted Punch Tees

BH Series

Provides a mechanical PE service pipe connection from a Steel gas pipe without the need to weld or drill.

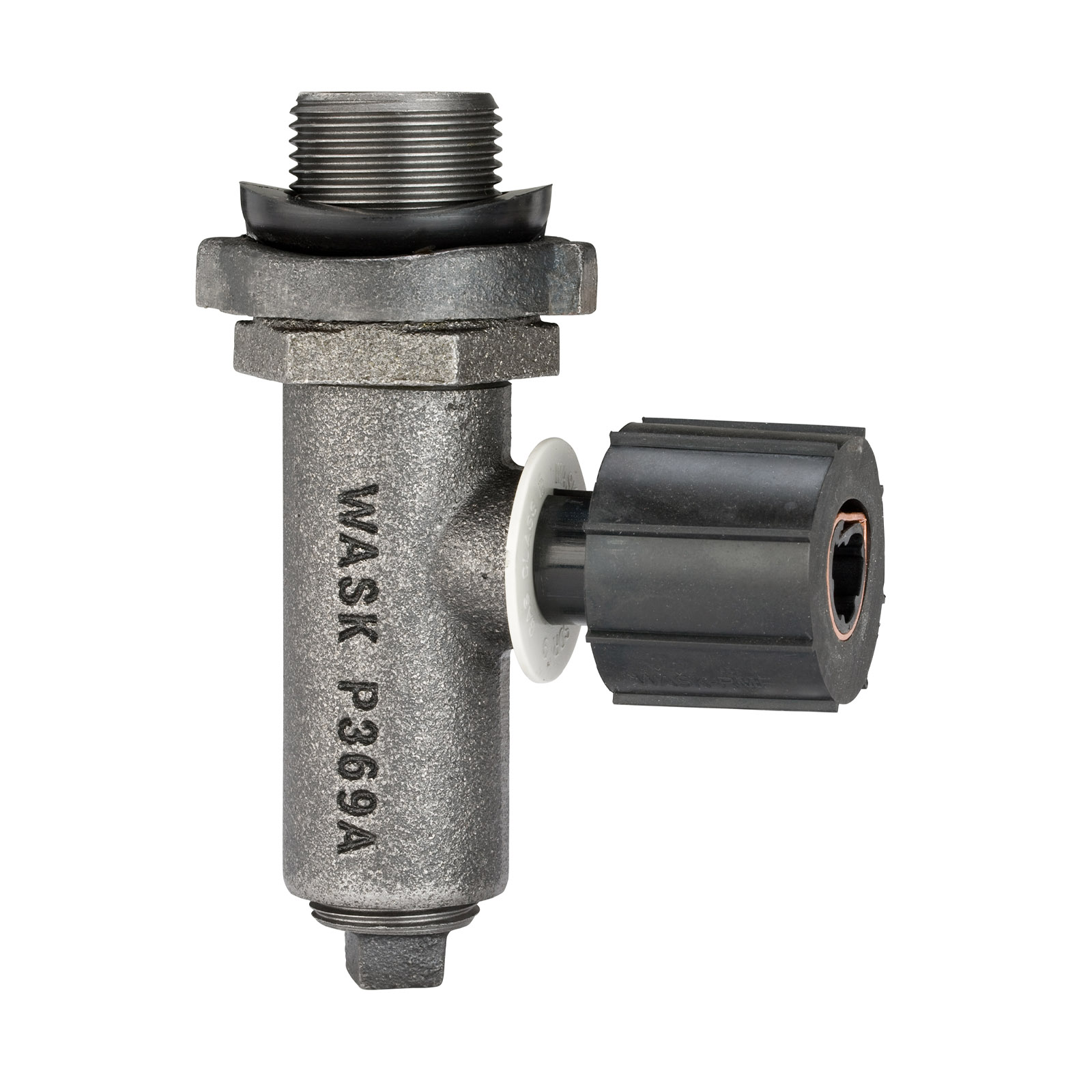

Comprising a Crimp Tee Body mounted to a 2-part Saddle, the fitting has an internal Punch to enable it to be installed without the need for a separate drilling machine. The Saddle has a shaped recess to compress the rubber Gasket to make a gas tight seal between the fitting and surface of the pipe. The outlet uses a Crimp joint to connect to the PE service pipe. Suitable for low and medium pressure gas mains.

Body, Cap & Screw: Steel.
Saddle & Strap: Malleable Iron or SG Iron.
Punch: Heat treated Steel.
Seals: NBR Rubber.
Anti-Shear Bush & Seal: EPDM Rubber
Crimp Ring: Copper – annealed.
Insulation Washer: Engineering plastic.
Corrosion protection: Zinc plated – must be site protected.

Fittings are suitable for site installation with simple hand tooling. The Crimp joint should be installed using the correct WASK Crimp tool. The internal Punch must be operated using the WASK tool BH0016. PE anti-shear sleeves must be fitted before making final PE connection.

Fittings must have an approved site corrosion protection system applied after installation and pressure testing.

Meets GIS/PL3:2014 requirements, BSI Kite Mark accredited – KM587336.
Maximum Operating Pressure (MOP) = 2.0 Bar.

Available in sizes from 20mm to 32mm PE for Steel pipes ¾” to 2” Nominal Bore.

Product Data

Enquiry Basket

The Product Data tables are filterable and searchable to help you find the products you are looking for faster.

Just click the column header that you want to filter or sort by. Then click Basket to add a product to the enquiry basket.

Part Number PE Size Ø PE Size SDR PE Size Grade Joint Type Saddle Size Saddle Size Ø Enquiry
BH0002 20 9 PE80 CRIMP 3/4" 26.9
BH0003 25 11 PE80 CRIMP 3/4" 26.9
BH0005 20 9 PE80 CRIMP 1" 33.7
BH0006 25 11 PE80 CRIMP 1" 33.7
BH0007 20 9 PE80 CRIMP 1 1/2" 48.3
BH0008 25 11 PE80 CRIMP 1 1/2" 48.3
BH0009 32 11 PE80 CRIMP 1 1/2" 48.3
BH0010 20 9 PE80 CRIMP 2" 60.3
BH0011 25 11 PE80 CRIMP 2" 60.3
BH0012 32 11 PE80 CRIMP 2" 60.3
BH0017 32 11 PE80 CRIMP 1" 33.7
BH0018 32 11 PE80 CRIMP 1 1/4" 42.4
BH0019 3/4" N/A FBSPT FEMALE 3/4" 26.9
BH0020 3/4" N/A FBSPT FEMALE 1 1/2" 48.3
BH0021 3/4" N/A FBSPT FEMALE 2" 60.3

Downloads

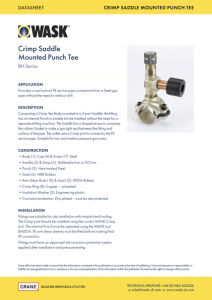

Datasheets
