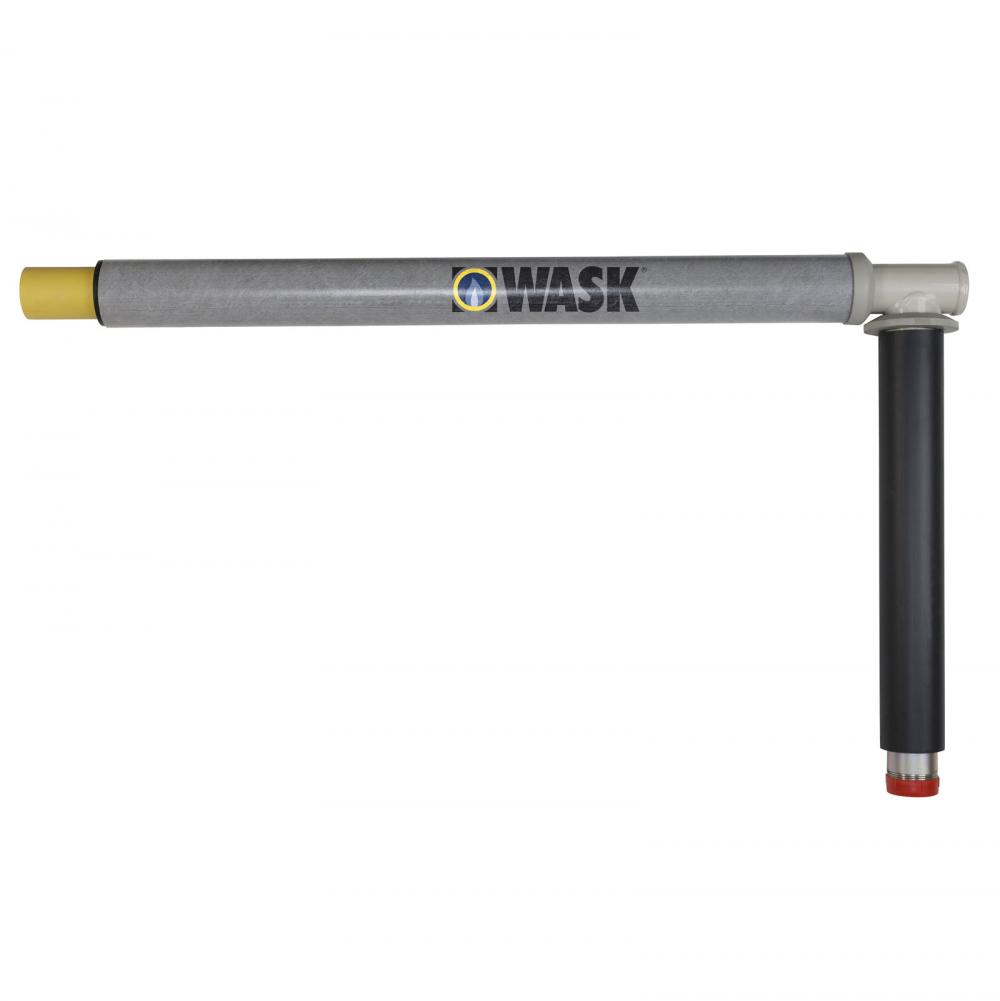

Factory Entry Elbow

AG Series

Provides a high strength transition fitting for connecting polyethylene gas pipe to a building via a steel 90° elbow and through wall pipe for an above ground connection.
Comprising a PECAT® mechanical joint, factory assembled with straight length of PE pipe with a GRP protective cover sleeve, a through wall steel outlet with tight fit PE cover terminating with a corresponding end connection (see outlet sizes and datasheets below for more details).

Body: Steel.
Outlet pipe cover: PE.
Inlet pipe: PE to GIS/PL2-2.
PE Cover tube: GRP
GRP Cover, Support, & Wall Seal: EPDM Rubber.
Corrosion protection: Zinc & Polyester coating.

Factory Entry Elbows are supplied suitable for site jointing by electro fusion only. Adjustment to entry height can be made by cutting PE & GRP tubes on site, no adjustment to through wall length is possible, see table below for available options.

Please refer to the PE fitting manufacturer’s instructions for details on electro fusion welding procedures.

Meets GIS/PL3:2014 requirements, BSI Kite Mark accredited – KM535530.
Maximum Operating Pressure (MOP) = 2.0 Bar.

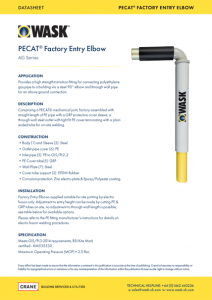

PECAT® Factory Entry Elbow: 90mm SDR11 x 3″ to 180mm SDR17.6 x 6″

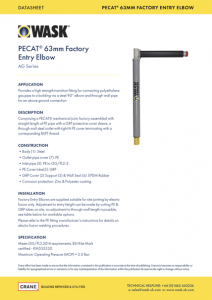

PECAT® 63mm Factory Entry Elbow: 63mm SDR11 x 2″ BSPT
PECAT® Factory Entry Elbow Flanged: 90mm SDR11 x 80 NP16 to 180mm SDR17.6 x 150 NP16
PECAT® Garden Entry Elbow: 63mm SDR11 x 63mm SDR11 only

Product Data

Enquiry Basket

The Product Data tables are filterable and searchable to help you find the products you are looking for faster.

Just click the column header that you want to filter or sort by. Then click Basket to add a product to the enquiry basket.

Part Number PE Size Ø PE Size SDR PE Grade Joint Type Outlet Size Outlet Type Outlet Length PE Pup Length GRP Cover Type Coating Type Coating Colour Enquiry
AG2016 90 11 PE80 PECAT 3" WELD 345 2 1.5 STD GREY
AG2018 90 11 PE80 PECAT 3" WELD 610 2 1.5 STD GREY
AG2019 90 11 PE80 PECAT 3" WELD 500 1 0.75 STD GREY
AG2022 90 11 PE80 PECAT 3" WELD 610 2 1.5 STD GREY
AG2028 90 11 PE80 PECAT 3" WELD 345 1 0.75 STD GREY
AG0034 63 11 PE80 CRIMP 2" MBSPT 150 N/A N/A HDG GREY
AG0035 63 11 PE80 CRIMP 2" MBSPT 150 N/A N/A HDB BLACK
AG0036 63 11 PE80 CRIMP 2" MBSPT 345 N/A N/A HDG GREY
AG0037 63 11 PE80 CRIMP 2" MBSPT 345 N/A N/A HDB BLACK
AG0038 63 11 PE80 CRIMP 2" MBSPT 500 N/A N/A HDG GREY
AG0039 63 11 PE80 CRIMP 2" MBSPT 500 N/A N/A HDB BLACK
AG0040 63 11 PE80 CRIMP 2" MBSPT 610 N/A N/A HDG GREY
AG0041 63 11 PE80 CRIMP 2" MBSPT 610 N/A N/A HDB BLACK
AG0042 63 11 PE80 CRIMP 2" WELD 610 N/A N/A HDG GREY
AG0043 63 11 PE80 CRIMP 2" WELD 610 N/A N/A HDB BLACK
AG0044 63 11 PE80 CRIMP 2" MBSPT 550 N/A N/A HDG GREY
AG0045 63 11 PE80 CRIMP 2" MBSPT 550 N/A N/A HDB BLACK
AG2058 90 11 PE80 PECAT 3" WELD 610 1 0.75 STD GREY
AG2061 90 11 PE80 PECAT 3" WELD 500 2 1.5 STD GREY
AG2093 63 11 PE80 PECAT 2" MBSPT 150 1 0.9 STD GREY
AG2094 63 11 PE80 PECAT 2" MBSPT 345 1 0.9 STD GREY
AG2095 63 11 PE80 PECAT 2" MBSPT 500 1 0.9 STD GREY
AG2096 63 11 PE80 PECAT 2" MBSPT 610 1 0.9 STD GREY
AG2098 63 11 PE80 PECAT 2" MBSPT 500 2 1.9 STD GREY
AG2104 63 11 PE80 PECAT 2" MBSPT 1500 1 0.9 STD GREY
AG2108 90 11 PE80 PECAT 3" WELD 1000 2 1.5 STD GREY
AG2109 63 11 PE80 PECAT 2" MBSPT 345 2 1.9 STD GREY
AG2110 90 17.6 PE80 PECAT 80 NP16 345 1 0.75 STD GREY
AG2111 90 17.6 PE80 PECAT 80 NP16 345 2 1.5 STD GREY
AG2112 90 17.6 PE80 PECAT 80 NP16 500 1 0.75 STD GREY
AG2113 63 17.6 PE80 PECAT 2" MBSPT 610 2 1.9 STD GREY
AG2114 63 17.6 PE80 PECAT 63 PE 500 1 0.9 STD GREY
AG2115 63 17.6 PE80 PECAT 2" MBSPT 1100 1 0.9 STD GREY
AG2116 63 17.6 PE80 PECAT 2" MBSPT 1300 1 0.9 STD GREY
AG2117 63 17.6 PE80 PECAT 2" MBSPT 750 1 0.9 STD GREY
AG2118 90 17.6 PE80 PECAT 80 NP16 500 2 1.5 STD GREY
AG2119 90 17.6 PE80 PECAT 80 NP16 610 1 0.75 STD GREY
AG2120 90 17.6 PE80 PECAT 80 NP16 610 2 1.5 STD GREY
AG2121 125 17.6 PE80 PECAT 100 NP16 345 1 0.75 STD GREY
AG2122 125 17.6 PE80 PECAT 100 NP16 345 2 1.5 STD GREY
AG2123 125 17.6 PE80 PECAT 100 NP16 610 1 0.75 STD GREY
AG2124 125 17.6 PE80 PECAT 100 NP16 610 2 1.5 STD GREY
AG2125 63 11 PE80 PECAT 2" MBSPT 1000 2 1.9 STD GREY
AG2126 63 11 PE80 PECAT 2" MBSPT 1000 1 0.9 STD GREY
AG2127 180 17.6 PE80 PECAT 150 NP16 345 1 0.75 STD GREY
AG2128 180 17.6 PE80 PECAT 150 NP16 345 2 1.5 STD GREY
AG2129 180 17.6 PE80 PECAT 150 NP16 610 1 0.75 STD GREY
AG2130 180 17.6 PE80 PECAT 150 NP16 610 2 1.5 STD GREY
