Meter Box Adaptors

AJ Series

Provides a high strength transition fitting for a polyethylene gas service pipe to a Meter Box installed above ground for connection to the customer ECV and meter installation.
Comprising a Crimp mechanical fitting which incorporates a bulkhead Bush and snap on C-Clip connection to the Meter Box terminating in a Male BSPT thread. A rubber GRP Bush is supplied to support the GRP cover tube over the PE pipe.  Suitable for low and medium pressure gas meter installations.

Sperryn Meter Kits

Body: Steel or Brass.
C-Clip: Engineering plastic
Meter Box Bush: Engineering plastic.
Insulation Washer: Engineering plastic.
Crimp Ring: Copper – annealed.
GRP Bush: EPDM Rubber.
Packing Tube: Cardboard.
Corrosion protection: Zinc electro plated.

The Crimp joint should be made using the correct WASK Crimp tool before the fitting is installed in the Meter Box. The C-Clip is removed to allow the fitting to be installed in Inset or Recessed type boxes, then snapped back in to place to retain the fitting. For Surface mounted box the fitting can be slid in to place with removing the C-Clip. After assembly the GRP cover tube should be located on the GRP Bush provided.

Meets GIS/PL3:2014 requirements, BSI Kite Mark accredited KM587336.
Maximum Operating Pressure (MOP) = 5.5 Bar.

Available in sizes from 16mm to 32mm with threads ½” BSPT to 1” BSPT.

Product Data

Enquiry Basket

The Product Data tables are filterable and searchable to help you find the products you are looking for faster.

Just click the column header that you want to filter or sort by. Then click Basket to add a product to the enquiry basket.

Part Number PE Size Ø PE Size SDR PE Size Grade Outlet Size Outlet Type Body & Coating Type Body & Coating Type Offset Body & Coating Type Length Body & Coating Type Colour Enquiry
AJ0001 20 9 PE80 3/4" MBSPT CORBEL 92 SHORT GREY
AJ0002 20 9 PE80 3/4" MBSPT CORBEL 92 LONG GREY
AJ0003 25 11 PE80 3/4" MBSPT CORBEL 92 SHORT GREY
AJ0004 25 11 PE80 3/4" MBSPT CORBEL 92 LONG GREY
AJ0005 32 11 PE80 3/4" MBSPT CORBEL 95 SHORT GREY
AJ0006 16 7 PE80 1/2" MBSPT STD N/A N/A GOLD
AJ0007 16 7 PE80 3/4" MBSPT STD N/A N/A GOLD
AJ0008 20 9 PE80 3/4" MBSPT STD N/A N/A GOLD
AJ0009 32 11 PE80 3/4" MBSPT SEMI N/A N/A GREEN
AJ0010 20 9 PE80 3/4" MBSPT SEMI N/A N/A GREEN
AJ0011 20 9 PE80 3/4" MBSPT TOPE N/A N/A GOLD
AJ0012 25 11 PE80 3/4" MBSPT STD N/A N/A GOLD
AJ0013 25 11 PE80 3/4" MBSPT SEMI N/A N/A GREEN
AJ0014 25 11 PE80 3/4" MBSPT TOPE N/A N/A GOLD
AJ0015 32 11 PE80 3/4" MBSPT STD N/A N/A GOLD
AJ0017 32 11 PE80 1" MBSPT STD N/A N/A GOLD
AJ0019 32 11 PE80 3/4" MBSPT CORBEL 95 LONG GREY
AJ0026 32 11 PE80 3/4" MBSPT TOPE N/A N/A GOLD
AJ0035 25 11 PE80 3/4" MBSPT SEMI N/A EXTENDED GREEN
AJ0036 32 11 PE80 3/4" MBSPT SEMI N/A EXTENDED GREEN
AJ0041 20 9 PE80 3/4" MBSPT SEMI N/A EXTENDED GREEN
AJ0042 20 9 PE80 3/4" MBSPT STD N/A N/A BRASS
AJ0043 25 11 PE80 3/4" MBSPT STD N/A N/A BRASS
AJ0044 32 11 PE80 3/4" MBSPT STD N/A N/A BRASS
AJ0045 32 11 PE80 1" MBSPT STD N/A N/A BRASS
AJ0046 20 9 PE80 3/4" MBSPT UNIVERSAL N/A N/A BRASS
AJ0047 25 11 PE80 3/4" MBSPT UNIVERSAL N/A N/A BRASS
AJ0048 32 11 PE80 3/4" MBSPT UNIVERSAL N/A N/A BRASS
AJ0049 32 11 PE80 1" MBSPT UNIVERSAL N/A N/A BRASS
AJ0050 20 9 PE80 3/4" MBSPT UNIVERSAL N/A N/A SILVER
AJ0051 25 11 PE80 3/4" MBSPT UNIVERSAL N/A N/A SILVER
AJ0052 32 11 PE80 3/4" MBSPT UNIVERSAL N/A N/A SILVER
AJ0053 32 11 PE80 1" MBSPT UNIVERSAL N/A N/A SILVER
AJ0054 25 11 PE80 3/4" MBSPT TOPE N/A EXTENDED BRASS
AJ0055 32 11 PE80 3/4" MBSPT TOPE N/A EXTENDED BRASS
AJ0056 32 11 PE80 1" MBSPT TOPE N/A EXTENDED BRASS

Downloads

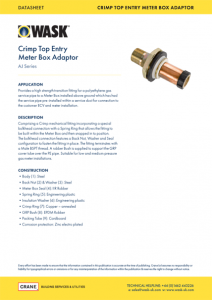

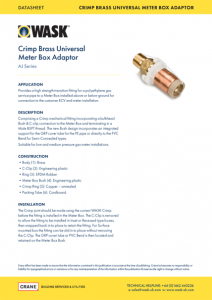

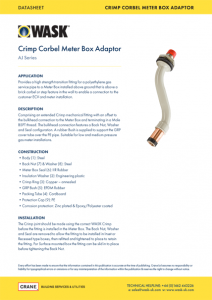

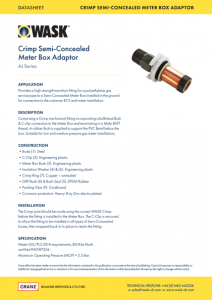

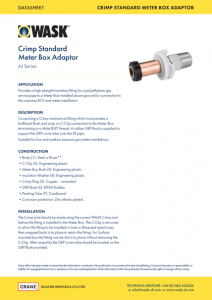

Datasheets
