House Entry Tees

AF Series

Provides a high strength transition fitting for polyethylene gas pipe to a building via a steel 90° elbow and steel through wall pipe for an above ground entry connection.
Comprising a Crimp site made mechanical joint, an integral shut off stopper valve and a steel through wall outlet pipe with tight fit PE cover terminating with a corresponding BSPT thread. Suitable for low pressure gas services.

Body and Cap: Steel.
Wall Seal & GRP Shroud: TPE Rubber.
Stopper & Cap Seals: NBR Rubber.
GRP Bush: EPDM Rubber
Crimp Ring: Copper – annealed.
Insulation Washer & Stopper: Engineering plastic.
Retention Washer: Spring Steel.
Weather Plug & Wall Sleeve: PE
Packing Tube: Cardboard.
Corrosion protection: Zinc plate & Polyester coating.

Crimp House Entry Tees are supplied suitable for site installation with the internal Stopper Plug in the open position to facilitate testing. The correct size of core drill should be used for the through wall branch. The Crimp joint should be installed using the correct WASK Crimp tool and the internal Stopper Plug can be operated if required using the WASK tool BE0034

Meets GIS/PL3:2014 requirements, BSI Kite Mark accredited KM587336.
Maximum Operating Pressure (MOP) = 2.0 Bar.

Available in sizes from 20mm to 32mm with threads ¾” BSPT or 1” BSPT. Various through wall lengths are available see table below.

Product Data

Enquiry Basket

The Product Data tables are filterable and searchable to help you find the products you are looking for faster.

Just click the column header that you want to filter or sort by. Then click Basket to add a product to the enquiry basket.

Part Number PE Size Ø PE Size SDR PE Grade Outlet Size Outlet Type Body & Coating Length Body & Coating Type Body & Coating Colour Enquiry
AF0069 20 9 PE80 3/4" MBSPT 150 CORBEL GREY
AF0070 20 9 PE80 3/4" MBSPT 345 CORBEL GREY
AF0071 20 9 PE80 3/4" MBSPT 500 CORBEL GREY
AF0090 20 9 PE80 3/4" MBSPT 150 STD GREY
AF0091 20 9 PE80 3/4" MBSPT 345 STD GREY
AF0092 20 9 PE80 3/4" MBSPT 500 STD GREY
AF0102 20 9 PE80 3/4" MBSPT 910 STD GREY
AF0104 20 9 PE80 3/4" MBSPT 610 STD GREY
AF0125 20 9 PE80 3/4" MBSPT 200 STD GREY
AF0126 20 9 PE80 3/4" MBSPT 250 STD GREY
AF0129 20 9 PE80 3/4" MBSPT 295 STD GREY
AF0149 20 9 PE80 3/4" MBSPT 650 STD GREY
AF0150 20 9 PE80 3/4" MBSPT 150 HDG GREY
AF0150B 20 9 PE80 3/4" MBSPT 150 HDB BLACK
AF0151 20 9 PE80 3/4" MBSPT 250 HDG GREY
AF0151B 20 9 PE80 3/4" MBSPT 250 HDB BLACK
AF0152 20 9 PE80 3/4" MBSPT 295 HDG GREY
AF0152B 20 9 PE80 3/4" MBSPT 295 HDB BLACK
AF0153 20 9 PE80 3/4" MBSPT 345 HDG GREY
AF0153B 20 9 PE80 3/4" MBSPT 345 HDB BLACK
AF0154 20 9 PE80 3/4" MBSPT 500 HDG GREY
AF0154B 20 9 PE80 3/4" MBSPT 500 HDB BLACK
AF0155 20 9 PE80 3/4" MBSPT 610 HDG GREY
AF0155B 20 9 PE80 3/4" MBSPT 610 HDB BLACK
AF0156 20 9 PE80 3/4" MBSPT 750 HDG GREY
AF0156B 20 9 PE80 3/4" MBSPT 750 HDB BLACK
AF0072 25 11 PE80 3/4" MBSPT 150 CORBEL GREY
AF0074 25 11 PE80 3/4" MBSPT 345 CORBEL GREY
AF0075 25 11 PE80 3/4" MBSPT 500 CORBEL GREY
AF0093 25 11 PE80 3/4" MBSPT 150 STD GREY
AF0094 25 11 PE80 3/4" MBSPT 345 STD GREY
AF0095 25 11 PE80 3/4" MBSPT 500 STD GREY
AF0103 25 11 PE80 3/4" MBSPT 1000 STD GREY
AF0127 25 11 PE80 3/4" MBSPT 200 STD GREY
AF0128 25 11 PE80 3/4" MBSPT 250 STD GREY
AF0130 25 11 PE80 3/4" MBSPT 295 STD GREY
AF0136 25 11 PE80 3/4" MBSPT 345 HDG GREY
AF0136B 25 11 PE80 3/4" MBSPT 345 HDB BLACK
AF0137 25 11 PE80 3/4" MBSPT 500 HDG GREY
AF0137B 25 11 PE80 3/4" MBSPT 500 HDB BLACK
AF0138 25 11 PE80 3/4" MBSPT 150 HDG GREY
AF0138B 25 11 PE80 3/4" MBSPT 150 HDB BLACK
AF0139 25 11 PE80 3/4" MBSPT 295 HDG GREY
AF0139B 25 11 PE80 3/4" MBSPT 295 HDB BLACK
AF0140 25 11 PE80 3/4" MBSPT 610 HDG GREY
AF0140B 25 11 PE80 3/4" MBSPT 610 HDB BLACK
AF0142 25 11 PE80 3/4" MBSPT 750 HDG GREY
AF0142B 25 11 PE80 3/4" MBSPT 750 HDB BLACK
AF0146 25 11 PE80 3/4" MBSPT 610 STD GREY
AF0147 25 11 PE80 3/4" MBSPT 250 HDG GREY
AF0147B 25 11 PE80 3/4" MBSPT 250 HDB BLACK
AF0075 32 11 PE80 1" MBSPT 150 CORBEL GREY
AF0076 32 11 PE80 1" MBSPT 345 CORBEL GREY
AF0077 32 11 PE80 1" MBSPT 500 CORBEL GREY
AF0096 32 11 PE80 1" MBSPT 150 STD GREY
AF0097 32 11 PE80 1" MBSPT 345 STD GREY
AF0098 32 11 PE80 1" MBSPT 500 STD GREY
AF0119 32 11 PE80 1" MBSPT 610 STD GREY
AF0124 32 11 PE80 1" MBSPT 1000 STD GREY
AF0131 32 11 PE80 1" MBSPT 295 STD GREY
AF0132 32 11 PE80 1" MBSPT 345 HDG GREY
AF0132B 32 11 PE80 1" MBSPT 345 HDB BLACK
AF0133 32 11 PE80 1" MBSPT 500 HDG GREY
AF0133B 32 11 PE80 1" MBSPT 500 HDB BLACK
AF0134 32 11 PE80 1" MBSPT 150 HDG GREY
AF0134B 32 11 PE80 1" MBSPT 150 HDB BLACK
AF0135 32 11 PE80 1" MBSPT 295 HDG GREY
AF0135B 32 11 PE80 1" MBSPT 295 HDB BLACK
AF0143 32 11 PE80 1" MBSPT 750 HDG GREY
AF0143B 32 11 PE80 1" MBSPT 750 HDB BLACK
AF0144 32 11 PE80 1" MBSPT 750 STD GREY
AF0145 32 11 PE80 1" MBSPT 610 HDG GREY
AF0145B 32 11 PE80 1" MBSPT 610 HDB BLACK

Downloads

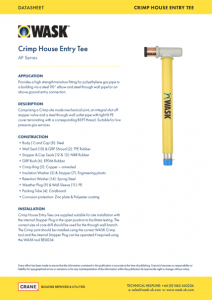

Datasheets
