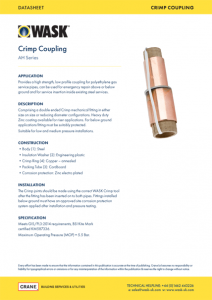

Crimp Coupling

AH Series

Provides a high strength, low profile coupling for polyethylene gas service pipes, can be used for emergency repair above or below ground and for service insertion inside existing steel services.
Comprising a double ended Crimp mechanical fitting in either size on size or reducing diameter configurations. Heavy duty Zinc coating available for riser applications. For below ground applications fitting must be suitably protected. Suitable for low and medium pressure installations.

Body: Steel
Insulation Washer: Engineering plastic
Crimp Ring: Copper – annealed
Packing Tube: Cardboard
Corrosion Protection: Zinc electro plated

The Crimp joints should be made using the correct WASK Crimp tool after the fitting has been inserted on to both pipes. Fittings installed below ground must have an approved site corrosion protection system applied after installation and pressure testing.

Meets GIS/PL3:2014 requirements, BSI Kite Mark
certified KM587336.
Maximum Operating Pressure (MOP) = 5.5 Bar.

Product Data

Enquiry Basket

The Product Data tables are filterable and searchable to help you find the products you are looking for faster.

Just click the column header that you want to filter or sort by. Then click Basket to add a product to the enquiry basket.

Part Number PE Inlet Size Ø PE Inlet Size SDR PE Inlet Size Grade PE Outlet Size Ø PE Outlet Size SDR PE Outlet Size Grade Body Type Bot Type Offset Body Type Coating Body Type Colour Enquiry
AH0001 20 9 PE80 20 9 PE80 CORBEL 92 POLY GREY
AH0002 25 11 PE80 25 11 PE80 CORBEL 92 POLY GREY
AH0003 32 11 PE80 32 11 PE80 CORBEL 95 POLY GREY
AH0007 20 9 PE80 25 11 PE80 STRAIGHT N/A STD GOLD
AH0008 25 11 PE80 25 11 PE80 STRAIGHT N/A STD GOLD
AH0011 25 11 PE80 32 11 PE80 STRAIGHT N/A STD GOLD
AH0012 32 11 PE80 32 11 PE80 STRAIGHT N/A STD GOLD
AH0013 16 7 PE80 20 9 PE80 STRAIGHT N/A STD GOLD
AH0014 20 9 PE80 20 9 PE80 STRAIGHT N/A HDS SILVER
AH0015 25 11 PE80 32 11 PE80 STRAIGHT N/A HDS SILVER
AH0016 32 11 PE80 32 11 PE80 STRAIGHT N/A HDS SILVER
AH0035 20 9 PE80 32 11 PE80 STRAIGHT N/A STD GOLD
AH0039 63 11 PE80 63 11 PE80 CORBEL 120 HDG GREY
AH0039B 63 11 PE80 63 11 PE80 CORBEL 120 HDB BLACK
AH0040 63 11 PE80 63 11 PE80 CORBEL 185 HDG GREY
AH0040B 63 11 PE80 63 11 PE80 CORBEL 185 HDB BLACK
AH0041 63 11 PE80 63 11 PE80 CORBEL 130 HDG GREY
AH0041B 63 11 PE80 63 11 PE80 CORBEL 130 HDB BLACK
AH0042 63 11 PE80 63 11 PE80 CORBEL 140 HDG GREY
AH0042B 63 11 PE80 63 11 PE80 CORBEL 140 HDB BLACK
AH0043 63 11 PE80 63 11 PE80 CORBEL 150 HDG GREY
AH0043B 63 11 PE80 63 11 PE80 CORBEL 150 HDB BLACK
AH0044 63 11 PE80 63 11 PE80 CORBEL 160 HDG GREY
AH0044B 63 11 PE80 63 11 PE80 CORBEL 160 HDB BLACK
AH0045 63 11 PE80 63 11 PE80 CORBEL 170 HDG GREY
AH0045B 63 11 PE80 63 11 PE80 CORBEL 170 HDB BLACK
AH0046 63 11 PE80 63 11 PE80 CORBEL 180 HDG GREY
AH0046B 63 11 PE80 63 11 PE80 CORBEL 180 HDB BLACK
AH0047 63 11 PE80 63 11 PE80 CORBEL 190 HDG GREY
AH0047B 63 11 PE80 63 11 PE80 CORBEL 190 HDB BLACK
AH0048 63 11 PE80 63 11 PE80 CORBEL 200 HDG GREY
AH0048B 63 11 PE80 63 11 PE80 CORBEL 200 HDB BLACK
AH0049 63 11 PE80 63 11 PE80 CORBEL 210 HDG GREY
AH0049B 63 11 PE80 63 11 PE80 CORBEL 210 HDB BLACK
AH0050 63 11 PE80 63 11 PE80 CORBEL 220 HDG GREY
AH0050B 63 11 PE80 63 11 PE80 CORBEL 220 HDB BLACK
AH0051 63 11 PE80 63 11 PE80 CORBEL 230 HDG GREY
AH0051B 63 11 PE80 63 11 PE80 CORBEL 230 HDB BLACK
AH0052 63 11 PE80 63 11 PE80 CORBEL 240 HDG GREY
AH0052B 63 11 PE80 63 11 PE80 CORBEL 240 HDB BLACK
AH0053 63 11 PE80 63 11 PE80 CORBEL 250 HDG GREY
AH0053B 63 11 PE80 63 11 PE80 CORBEL 250 HDB BLACK
AH0054 32 11 PE80 32 11 PE80 SOIL 158 HDG GREY
AH0054B 32 11 PE80 32 11 PE80 SOIL 158 HDB BLACK
AH0055 63 11 PE80 63 11 PE80 SOIL 158 HDG GREY
AH0055B 63 11 PE80 63 11 PE80 SOIL 158 HDB BLACK
AH0056 63 11 PE80 63 11 PE80 SOIL 118 HDG GREY
AH0056B 63 11 PE80 63 11 PE80 SOIL 118 HDB BLACK
AH0057 63 11 PE80 63 11 PE80 SOIL 128 HDG GREY
AH0057B 63 11 PE80 63 11 PE80 SOIL 128 HDB BLACK
AH0058 63 11 PE80 63 11 PE80 SOIL 138 HDG GREY
AH0058B 63 11 PE80 63 11 PE80 SOIL 138 HDB BLACK
AH0059 63 11 PE80 63 11 PE80 SOIL 148 HDG GREY
AH0059B 63 11 PE80 63 11 PE80 SOIL 148 HDB BLACK
AH0060 63 11 PE80 63 11 PE80 SOIL 168 HDG GREY
AH0060B 63 11 PE80 63 11 PE80 SOIL 168 HDB BLACK
AH0061 63 11 PE80 63 11 PE80 SOIL 178 HDG GREY
AH0061B 63 11 PE80 63 11 PE80 SOIL 178 HDB BLACK
AH0062 63 11 PE80 63 11 PE80 SOIL 188 HDG GREY
AH0062B 63 11 PE80 63 11 PE80 SOIL 188 HDB BLACK
AH0063 63 11 PE80 63 11 PE80 SOIL 198 HDG GREY
AH0063B 63 11 PE80 63 11 PE80 SOIL 198 HDB BLACK
AH0064 63 11 PE80 63 11 PE80 SOIL 208 HDG GREY
AH0064B 63 11 PE80 63 11 PE80 SOIL 208 HDB BLACK
AH0065 63 11 PE80 63 11 PE80 SOIL 218 HDG GREY
AH0065B 63 11 PE80 63 11 PE80 SOIL 218 HDB BLACK
AH0066 32 11 PE80 32 11 PE80 SOIL 118 HDG GREY
AH0066B 32 11 PE80 32 11 PE80 SOIL 118 HDB BLACK
AH0067 32 11 PE80 32 11 PE80 SOIL 128 HDG GREY
AH0067B 32 11 PE80 32 11 PE80 SOIL 128 HDB BLACK
AH0068 32 11 PE80 32 11 PE80 SOIL 138 HDG GREY
AH0068B 32 11 PE80 32 11 PE80 SOIL 138 HDB BLACK
AH0069 32 11 PE80 32 11 PE80 SOIL 148 HDG GREY
AH0069B 32 11 PE80 32 11 PE80 SOIL 148 HDB BLACK
AH0070 32 11 PE80 32 11 PE80 SOIL 168 HDG GREY
AH0070B 32 11 PE80 32 11 PE80 SOIL 168 HDB BLACK
AH0071 32 11 PE80 32 11 PE80 SOIL 178 HDG GREY
AH0071B 32 11 PE80 32 11 PE80 SOIL 178 HDB BLACK
AH0072 32 11 PE80 32 11 PE80 SOIL 188 HDG GREY
AH0072B 32 11 PE80 32 11 PE80 SOIL 188 HDB BLACK
AH0073 32 11 PE80 32 11 PE80 SOIL 198 HDG GREY
AH0073B 32 11 PE80 32 11 PE80 SOIL 198 HDB BLACK
AH0074 32 11 PE80 32 11 PE80 SOIL 208 HDG GREY
AH0074B 32 11 PE80 32 11 PE80 SOIL 208 HDB BLACK
AH0075 32 11 PE80 32 11 PE80 SOIL 218 HDG GREY
AH0075B 32 11 PE80 32 11 PE80 SOIL 218 HDB BLACK
AH0076 25 11 PE80 25 11 PE80 SOIL 118 HDG GREY
AH0076B 25 11 PE80 25 11 PE80 SOIL 118 HDB BLACK
AH0077 25 11 PE80 25 11 PE80 SOIL 128 HDG GREY
AH0077B 25 11 PE80 25 11 PE80 SOIL 128 HDB BLACK
AH0078 25 11 PE80 25 11 PE80 SOIL 138 HDG GREY
AH0078B 25 11 PE80 25 11 PE80 SOIL 138 HDB BLACK
AH0079 25 11 PE80 25 11 PE80 SOIL 148 HDG GREY
AH0079B 25 11 PE80 25 11 PE80 SOIL 148 HDB BLACK
AH0080 25 11 PE80 25 11 PE80 SOIL 158 HDG GREY
AH0080B 25 11 PE80 25 11 PE80 SOIL 158 HDB BLACK
AH0081 25 11 PE80 25 11 PE80 SOIL 168 HDG GREY
AH0081B 25 11 PE80 25 11 PE80 SOIL 168 HDB BLACK
AH0082 25 11 PE80 25 11 PE80 SOIL 178 HDG GREY
AH0082B 25 11 PE80 25 11 PE80 SOIL 178 HDB BLACK
AH0083 25 11 PE80 25 11 PE80 SOIL 188 HDG GREY
AH0083B 25 11 PE80 25 11 PE80 SOIL 188 HDB BLACK
AH0084 25 11 PE80 25 11 PE80 SOIL 198 HDG GREY
AH0084B 25 11 PE80 25 11 PE80 SOIL 198 HDB BLACK
AH0085 25 11 PE80 25 11 PE80 SOIL 208 HDG GREY
AH0085B 25 11 PE80 25 11 PE80 SOIL 208 HDB BLACK
AH0086 25 11 PE80 25 11 PE80 SOIL 218 HDG GREY
AH0086B 25 11 PE80 25 11 PE80 SOIL 218 HDB BLACK
AH0087 32 11 PE80 63 11 PE80 STRAIGHT N/A HD SILVER
AH0089 32 11 PE80 32 11 PE80 CORBEL 100 HDG GREY
AH0089B 32 11 PE80 32 11 PE80 CORBEL 100 HDB BLACK
AH0090 32 11 PE80 32 11 PE80 CORBEL 110 HDG GREY
AH0090B 32 11 PE80 32 11 PE80 CORBEL 110 HDB BLACK
AH0091 32 11 PE80 32 11 PE80 CORBEL 120 HDG GREY
AH0091B 32 11 PE80 32 11 PE80 CORBEL 120 HDB BLACK
AH0092 32 11 PE80 32 11 PE80 CORBEL 130 HDG GREY
AH0092B 32 11 PE80 32 11 PE80 CORBEL 130 HDB BLACK
AH0093 32 11 PE80 32 11 PE80 CORBEL 140 HDG GREY
AH0093B 32 11 PE80 32 11 PE80 CORBEL 140 HDB BLACK
AH0094 32 11 PE80 32 11 PE80 CORBEL 150 HDG GREY
AH0094B 32 11 PE80 32 11 PE80 CORBEL 150 HDB BLACK
AH0095 32 11 PE80 32 11 PE80 CORBEL 160 HDG GREY
AH0095B 32 11 PE80 32 11 PE80 CORBEL 160 HDB BLACK
AH0096 32 11 PE80 32 11 PE80 CORBEL 170 HDG GREY
AH0096B 32 11 PE80 32 11 PE80 CORBEL 170 HDB BLACK
AH0097 32 11 PE80 32 11 PE80 CORBEL 180 HDG GREY
AH0097B 32 11 PE80 32 11 PE80 CORBEL 180 HDB BLACK
AH0098 32 11 PE80 32 11 PE80 CORBEL 190 HDG GREY
AH0098B 32 11 PE80 32 11 PE80 CORBEL 190 HDB BLACK
AH0099 32 11 PE80 32 11 PE80 CORBEL 200 HDG GREY
AH0099B 32 11 PE80 32 11 PE80 CORBEL 200 HDB BLACK
AH0100 32 11 PE80 32 11 PE80 CORBEL 210 HDG GREY
AH0100B 32 11 PE80 32 11 PE80 CORBEL 210 HDB BLACK
AH0101 32 11 PE80 32 11 PE80 CORBEL 220 HDG GREY
AH0101B 32 11 PE80 32 11 PE80 CORBEL 220 HDB BLACK
AH0102 32 11 PE80 32 11 PE80 CORBEL 230 HDG GREY
AH0102B 32 11 PE80 32 11 PE80 CORBEL 230 HDB BLACK
AH0103 32 11 PE80 32 11 PE80 CORBEL 240 HDG GREY
AH0103B 32 11 PE80 32 11 PE80 CORBEL 240 HDB BLACK
AH0104 32 11 PE80 32 11 PE80 CORBEL 250 HDG GREY
AH0104B 32 11 PE80 32 11 PE80 CORBEL 250 HDB BLACK
