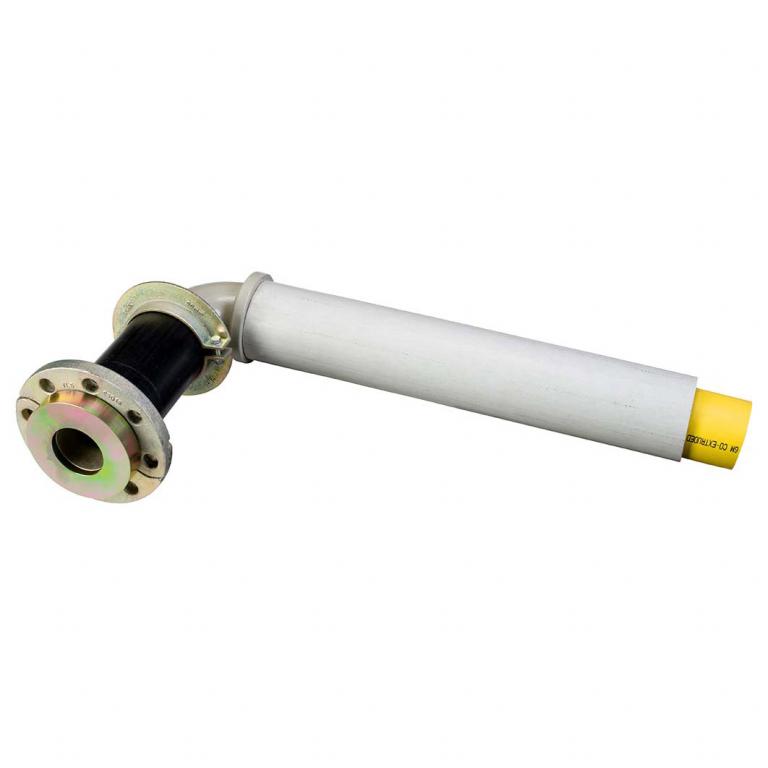

PECAT® Split Flange Factory Entry Elbow

AG Series

Provides a high strength transition fitting for connecting polyethylene gas pipe to a building via a steel 90° elbow and through wall pipe for an above ground connection.
Comprising a PECAT® mechanical joint, factory assembled with straight length of PE pipe with a GRP protective cover sleeve, a through wall steel outlet with tight fit PE cover terminating with a corresponding NP16 Split Flange assembly (see outlet sizes and datasheets below for more details).

Body, Sleeve & Retainer: Steel
Outlet pipe cover: PE
Inlet pipe: PE to GIS/PL2-2
Flange & Bracket: SG Iron
PE Cover tube: GRP
O-Ring: NBR rubber
Cover tube support: EPDM Rubber
Corrosion protection: Zinc plate & Epoxy/Polyester coating

Flanged Factory Entry Elbows supplied suitable for site jointing by electro fusion only. Adjustment to entry height can be made by cutting PE & GRP tubes on site, no adjustment to through wall length is possible, see table below for available options.

Please refer to the PE fitting manufacturer’s instructions for details on electro fusion welding procedures.

Meets GIS/PL3:2014 requirements, BSI Kite Mark accredited – KM535530. Maximum Operating Pressure (MOP) = 2.0 Bar.

90mm SDR11 x 80 NP16 to 180mm SDR17.6 x 150 NP16

Product Data

Enquiry Basket

The Product Data tables are filterable and searchable to help you find the products you are looking for faster.

Just click the column header that you want to filter or sort by. Then click Basket to add a product to the enquiry basket.

Part Number PE Size Ø PE Size SDR PE Grade Joint Type Outlet Size Outlet Type Outlet Length PE Pup Length GRP Cover Type Coating Type Coating Colour Enquiry
AG2110 90 17.6 PE80 PECAT 80 NP16 345 1 0.75 STD GREY
AG2111 90 17.6 PE80 PECAT 80 NP16 345 2 1.5 STD GREY
AG2112 90 17.6 PE80 PECAT 80 NP16 500 1 0.75 STD GREY
AG2118 90 17.6 PE80 PECAT 80 NP16 500 2 1.5 STD GREY
AG2119 90 17.6 PE80 PECAT 80 NP16 610 1 0.75 STD GREY
AG2120 90 17.6 PE80 PECAT 80 NP16 610 2 1.5 STD GREY
AG2121 125 17.6 PE80 PECAT 100 NP16 345 1 0.75 STD GREY
AG2122 125 17.6 PE80 PECAT 100 NP16 345 2 1.5 STD GREY
AG2123 125 17.6 PE80 PECAT 100 NP16 610 1 0.75 STD GREY
AG2124 125 17.6 PE80 PECAT 100 NP16 610 2 1.5 STD GREY
AG2127 180 17.6 PE80 PECAT 150 NP16 345 1 0.75 STD GREY
AG2128 180 17.6 PE80 PECAT 150 NP16 345 2 1.5 STD GREY
AG2129 180 17.6 PE80 PECAT 150 NP16 610 1 0.75 STD GREY
AG2130 180 17.6 PE80 PECAT 150 NP16 610 2 1.5 STD GREY

Downloads

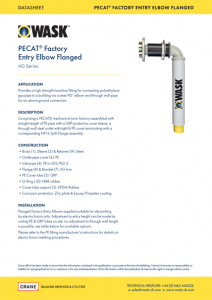

Datasheets

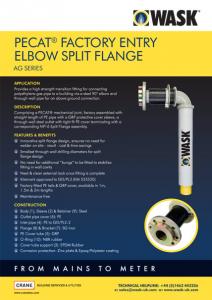

Brochures

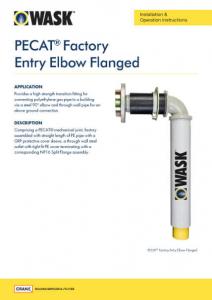

Installation & Operation Instructions
