PECAT Garage Entry Tees

BY Series

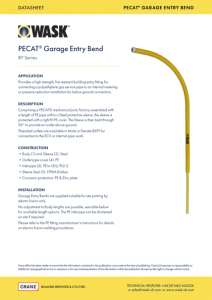

Provides a high strength, fire resistant building entry fitting for connecting a polyethylene gas service pipe to an internal metering or pressure reduction installation for below ground connection.
Comprising a PECAT® mechanical joint, factory assembled with a length of PE pipe within a Steel protective sleeve, the sleeve is protected with a tight fit PE cover. The Sleeve is then bent through 90 degrees to provide an outlet above ground. Threaded outlets are available in Male or Female BSPT for connection to the ECV or internal pipe work.

Body and Sleeve: Steel.
Outlet pipe cover: PE.
Inlet pipe: PE to GIS/PL2-2.
Sleeve Seal: EPDM Rubber.
Corrosion protection: PE & Zinc plate.

Garage Entry Bends are supplied suitable for site jointing by electro fusion only.

No adjustment to Body lengths are possible, see table below for available length options. The PE inlet pipe can be shortened on site if required.

Please refer to the PE fitting manufacturer’s instructions for details on electro fusion welding procedures.

Meets GIS/PL3:2014 requirements, BSI Kite Mark accredited – KM535530.

Maximum Operating Pressure (MOP) = 2.0 Bar.

25mm SDR11 x ¾” to 63mm SDR11 x 2”.

Product Data

Enquiry Basket

The Product Data tables are filterable and searchable to help you find the products you are looking for faster.

Just click the column header that you want to filter or sort by. Then click Basket to add a product to the enquiry basket.

Part Number PE Size Ø PE Size SDR PE Size Grade PE Size Length Outlet Size Outlet Type Horizontal Lengths Vertical Lengths Enquiry
BY2000 20 9 PE80 0.5 3/4" MBSPT 0.5 0.5
BY2001 25 11 PE80 0.5 3/4" MBSPT 0.5 0.5
BY2002 25 11 PE80 0.5 3/4" MBSPT 1.0 0.5
BY2003 25 11 PE80 0.5 3/4" FBSPT 1.0 0.5
BY2004 32 11 PE80 0.5 1" MBSPT 0.5 0.5
BY2005 32 11 PE80 0.5 1" MBSPT 1.0 0.5
BY2006 32 11 PE100 1.1 1" FBSPT 0.9 1.25
BY2007 32 11 PE100 0.5 1" FBSPT 0.8 1.15
BY2008 63 11 PE80 1.1 2" FBSPT 0.8 1.25
BY2009 63 11 PE80 0.5 2" FBSPT 0.8 0.8
BY2010 32 11 PE80 0.4 1" FBSPT 0.8 1.25
BY2014 63 11 PE80 0.5 2" FBSPT 0.8 1.25
BY2015 63 11 PE80 1.2 2" MBSPT 0.8 1.25
